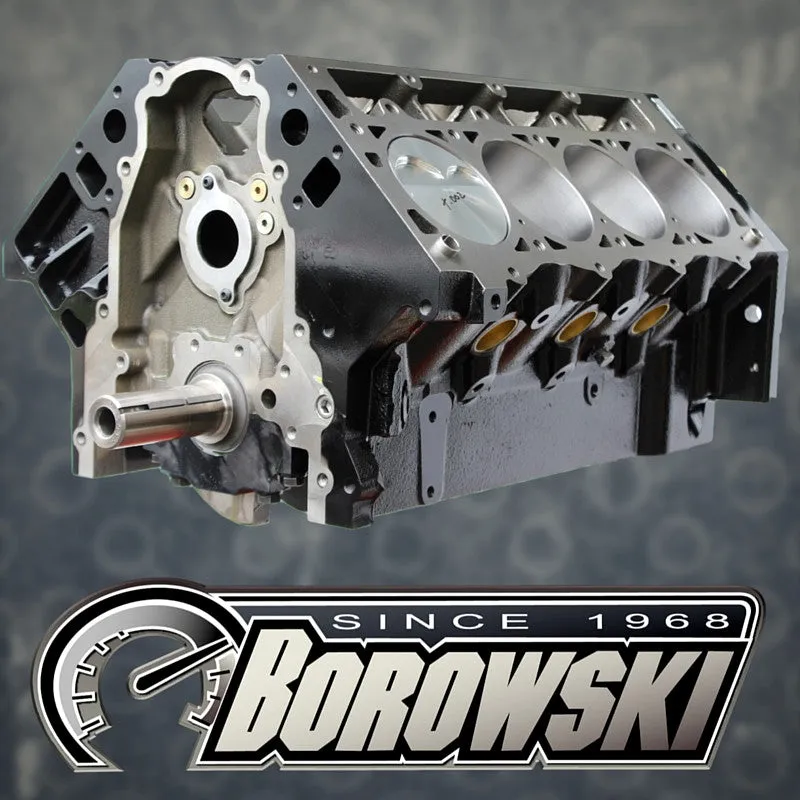

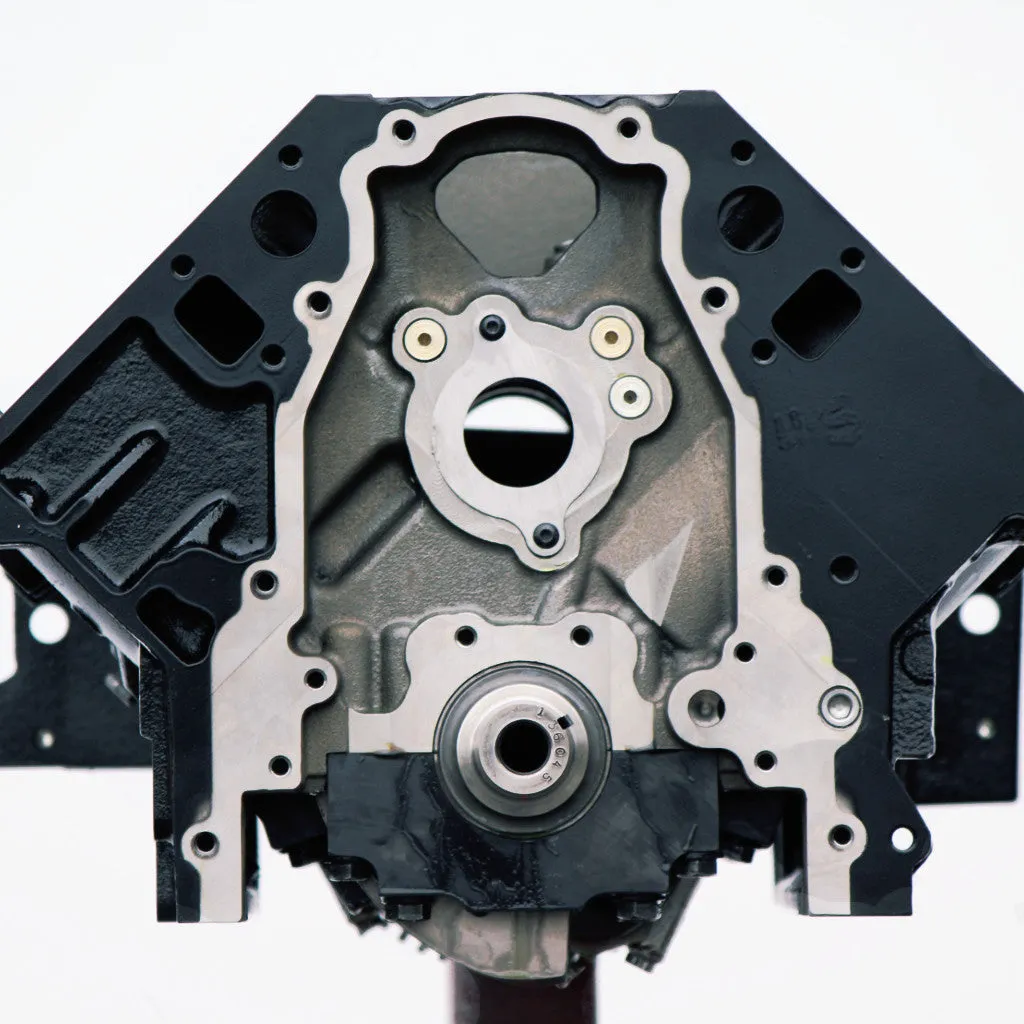

This short block is intended for light to moderate boost. The Dart SHP LS Next adds the convenience of directly bolting on GM covers and accessories without requiring oil spacer rails and remote oil filter adapters.
SHP Features
- Full side skirts to accommodate OE oil pans
- Accepts LS style Oil filters
- Retains all factory bolt hole locations
LS Next Features
Retains all of the LS Next designs features not found in competing blocks including but not limited to:
- Longer cylinder sleeves,
- Priority main oiling
- 4 bolt splayed main saddle structural

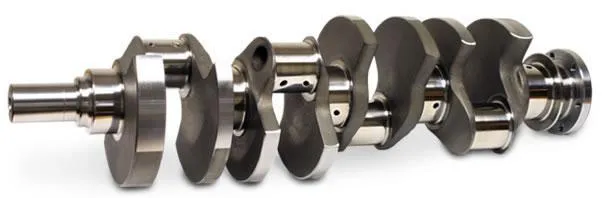

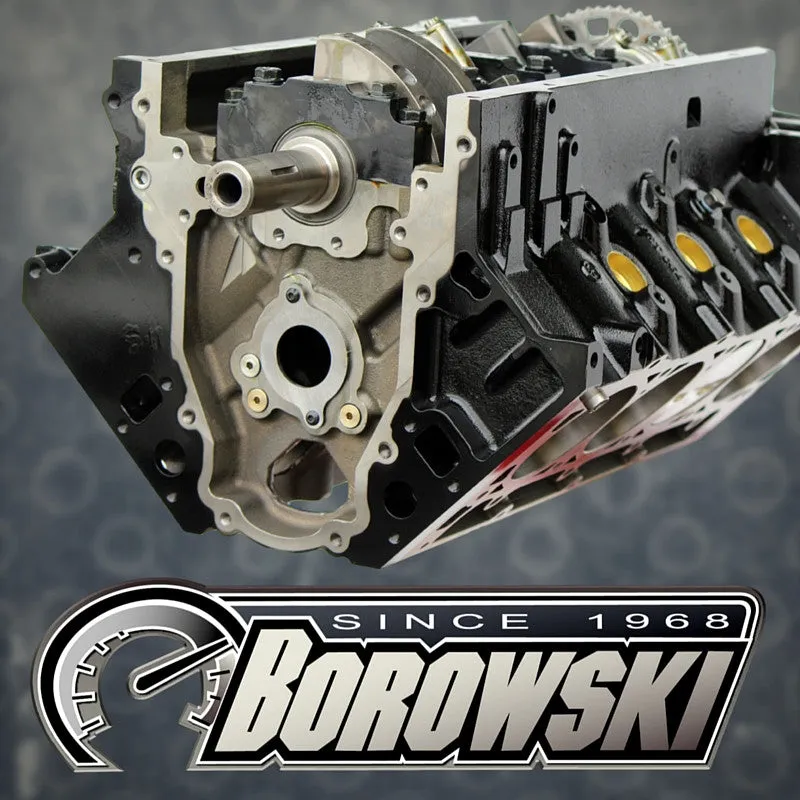

This 427 cubic inch short block has a 4.125 in bore and 4.00 in stroke. The dimensions are set with Callies Compstar center-counterweighted 4340 forged crank and Callies Compstar Extreme rods.
The center counterweights are a major upgrade as they increase the cranks stiffness by about 25% while reducing harmonics. The net result is less stress on the main bearings and longer engine life. Check out the video to see one in action and hear more on the subject direct from Callies' Brook Piper.

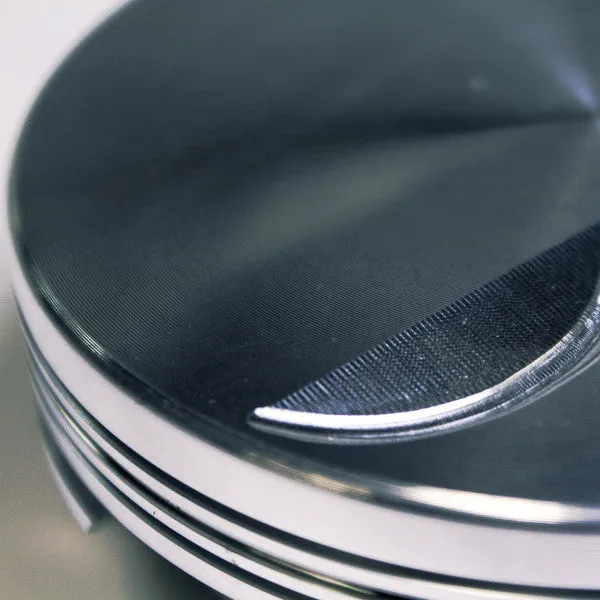

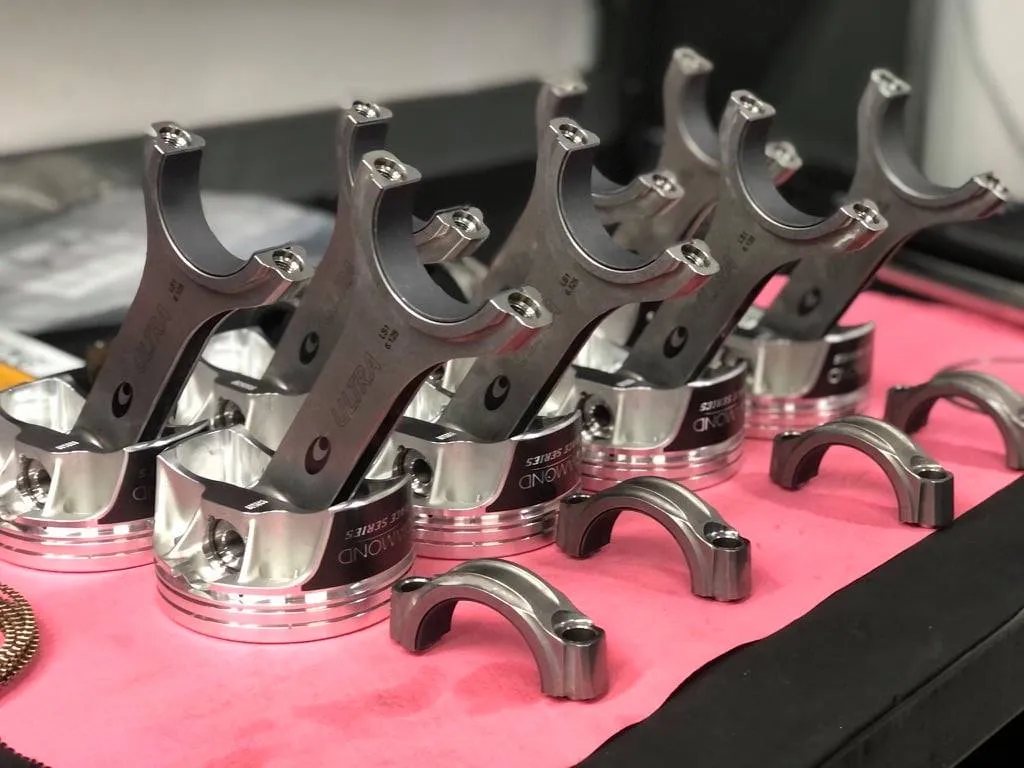

Topping off the rotating assembly are Diamond's Race Series pistons which are machined with their newest and most precise CNCs. Among their features :
- 3D milling on piston crowns for ready to install finish
- Valve pockets designed to work with most aftermarket cylinder heads
- Offset pins for quiet operation
- Moly skirt coating for friction loss and skirt wear protection
- Side gas ports for better ring seal
- 2618 material for High HP-NOS-Boost applications
- A wide range of designs are available. Call us for exact piston selection for your application (flat top, dish; LS3, LS7) or click BUY IT NOW to get to our website.

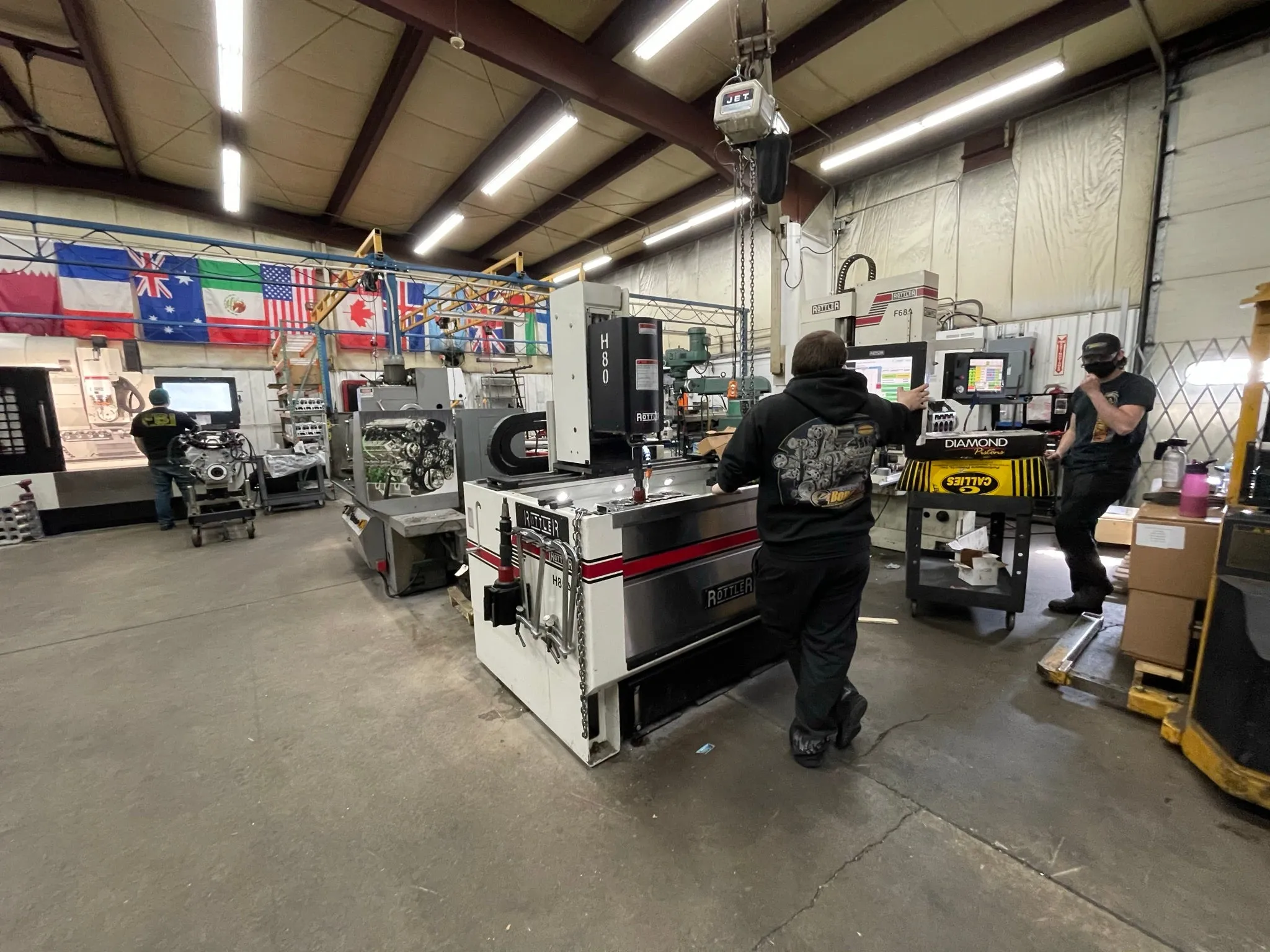

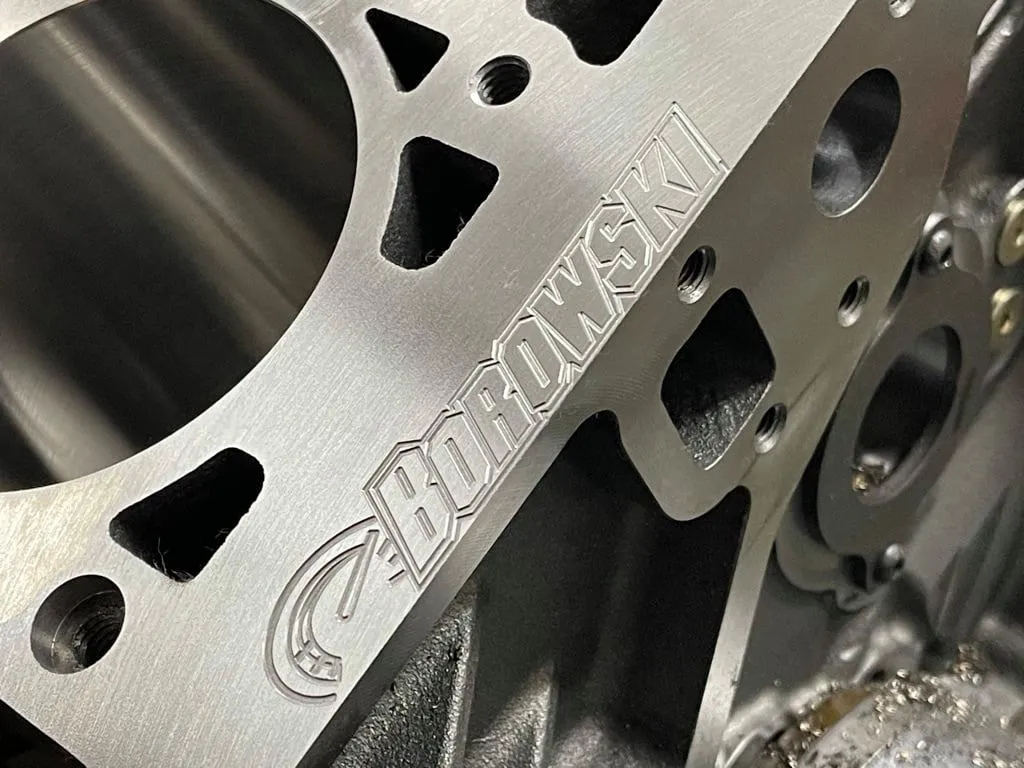

The skill of the people who finish machine and assemble your short block is just as important as the parts and design and we've got some of the best around. Further, BOROWSKI RACE ENGINES, INC. boasts state-of-the-art CNC machining equipment which empowers our staff to build the best engines available. This was recognized with our being named Race Engine Builder of the Year by Engine Builder Magazine. As a case in point, honing is a critical block machining process as it sets the final dimensions and surface finish. Watch this video to see how we do it on our CNC hone.
Call us at 815-725-2727 to discuss your requirements.
